Screenshots - Part 4

Simulation of Adsorption-Processes

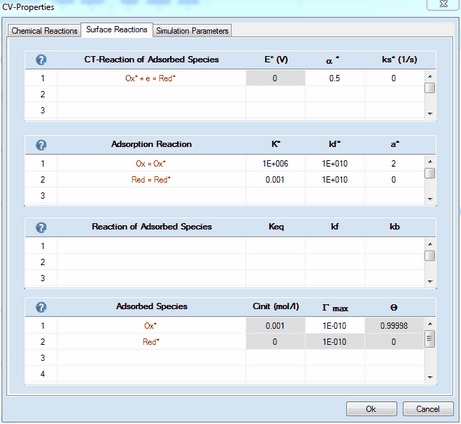

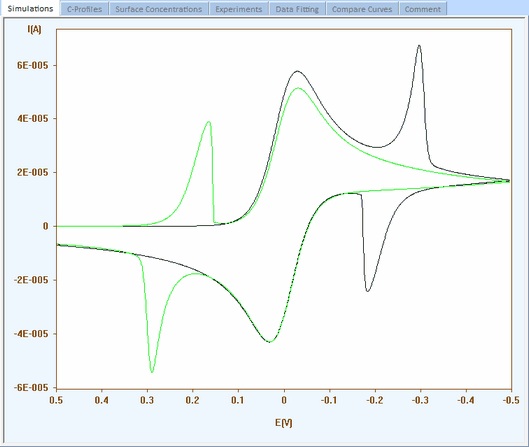

The Mechanism refers to a redox couple where oxidized and reduced species are adsorbed to a distinctly different extent Simulated CVs

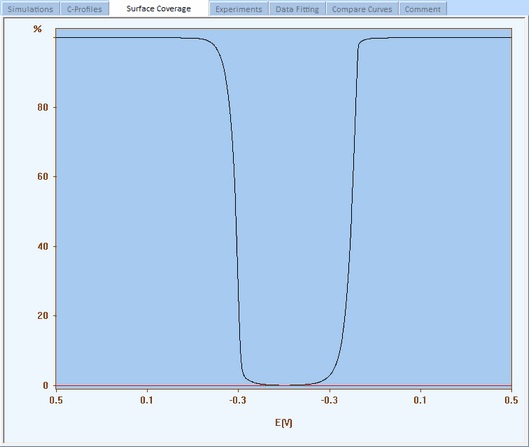

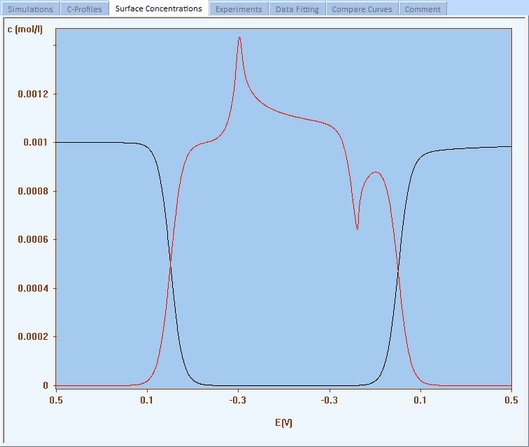

Simulated surface concentrations referring to the black CV Simulated surface coverage referring to the black CV
